Habasit Product Data Sheet TC-20EF – Last modification on 11/30/2011 – 1
HabaDRIVE Product Data Sheet
TC-20EF
Product Designation
Product Group: Polyester power transmission belts
Product Sub-Group: TC tangential/flat belts
Main Industry Segments: Paper manufacturing and processing; Yarn processing
Belt Applications: Driving belt; Tangential belt
Special Features: Dimensionally stable; Energy saving; High modulus of elasticity; Simple and fast
joining method
Mode of Use/Conveyance: Power transmission

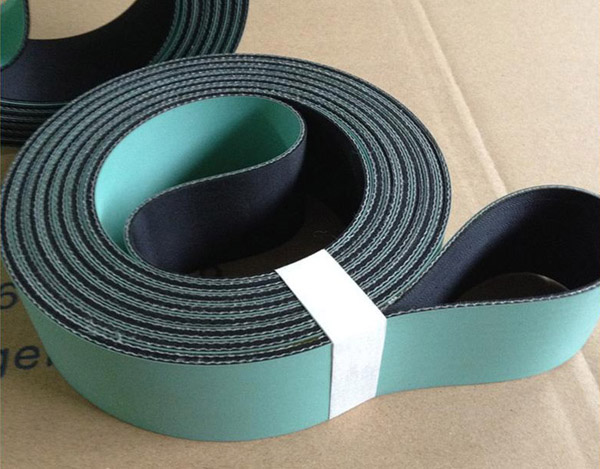

Product Design (enlarged)
Product Construction/Design
Friction cover/Pulley side (Material): Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (pulley/cylinder side)
Friction cover/Pulley side (Surface
structure):
Rough structure
Friction cover/Pulley side (Color): Black
Traction Layer (Material): Polyester (PET) fabric
Reverse cover (Material): Acrylonitrile-Butadiene-Rubber (NBR) as friction cover (whirl side)
Reverse cover (Surface structure): Fine structure
Reverse cover (Color): Light green
Product Characteristics
Drive determination: Double-sided power transmission
Antistatically equipped: Yes
Technical Data
Thickness: 2.0 mm 0.08 in.
Mass of belt (belt weight): 2.2 kg/m² 0.45 lbs./sq.ft
Pulley diameter (minimum): 25 mm 1 in.
Pulley diameter minimum with counter
flection:
25 mm 1 in.
Tensile force for 1% elongation (k1% after
running in) per unit of width (Habasit
standard SOP3-013):
10 N/mm 57 lbs./in.
Nominal peripheral force per unit of width: 21 N/mm 120 lbs./in.
Operating temperature admissible
(continuous):
Min -20
Max 70
°C
°C
Min -4
Max 158
°F
°F
Seamless manufacturing width: 1100 mm 43 in.
All data are approximate values under standard climatic conditions: 23°C/73°F, 50% relative humidity (DIN 50005/ISO 554), and are
based on the Master Joining Method.
Habasit Product Data Sheet TC-20EF – Last modification on 11/30/2011 – 2
Additional Technical Information
Chemical Resistance Class: 2 (These indications are not guarantees of properties)
Installation and Handling Instructions: Follow the Installing and Maintenance Instructions which are supplied with each
product delivery.
Limitations: Do not force belt on pulleys; Keep belt edges free of any installation/machine
contact; This product has not been tested according to ATEX standards
(atmospheres with explosion risk – ATEX 95 regulation or EU directive 94/9) and
therefore is subject to user’s analysis in the respective environment.
Storage
For details consult ‘Storage and handling requirements for belts and machine tapes’ or contact Habasit.
Protect belts from sunlight/UV-radiation/dust and dirt. Store spare belts in a cool and dry place and if possible in their original
packaging.
Legend
* No calculation Value
3) CLA: Coordination of the centre line-average value Ra (in the US also Arithmetical Average (AA)) to the maximum
peak to valley height Rt for surfaces manufactured by chip removal.
8) Due to high coefficient of friction of running/pulley side, the suitability for use on slider beds is limited
EEC European Economic Community
NAP Not applicable
